| Support | IEEE 802.3/802.3x/802.3u |
| Input voltage | 2 way 9～36V DC |

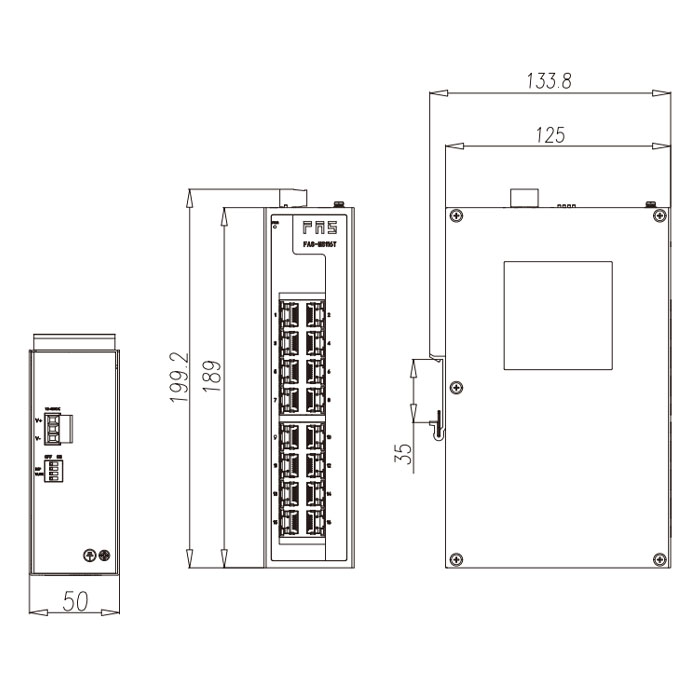

| Install | 35mm standard rail installation |
| MAC address | 16K |
| Support | Auto-negotiation 10/100Mbps, half/full duplex, Auto MDI/MDIX |
| Operating temperature | -40～75 ℃ |
| Working humidity | 5～95%(No condensation) |
| Material | Metal |
| Protection level | IP40 |
| Support | Anti-reverse connection protection |
| Warranty | 3 years |
| Store and forward |
| IEEE 802.3 | 10BaseT |
| IEEE 802.3u | 100BaseT(X) |
| IEEE 802.3x | Flow Control |
| Processing type | Store and forward |
| Switch properties |
| MAC address table size | 16K |
| Packet buffer size | 4MB |
| Interface | RJ45 port: 10/100BaseT(X) automatic detection, MID/MDIX adaptive |
| Working conditions | Temperature: -40～75 ℃, Humidity: 5～95% (no condensation) |
| Storage conditions | Temperature: -40～85 ℃, Humidity: 5～95% (no condensation) |
| Power supply | 2V~48V DC (24V recommended) |
| Overcurrent protection | 1.25A |
| Reverse connection protection | Support reverse connection protection |
| Electrical parameters |
| Operating Voltage | 9～36V DC |
| Operating temperature | -40～75 ℃ |
| Storage temperature | -40～85 ℃ |
| Overcurrent protection | 1.25A |
| Machine power consumption | 500mA@24V |
| Working humidity | 5～95%(no condensation) |
| Warranty period | 3 years |
| ESD | 2KV |
|

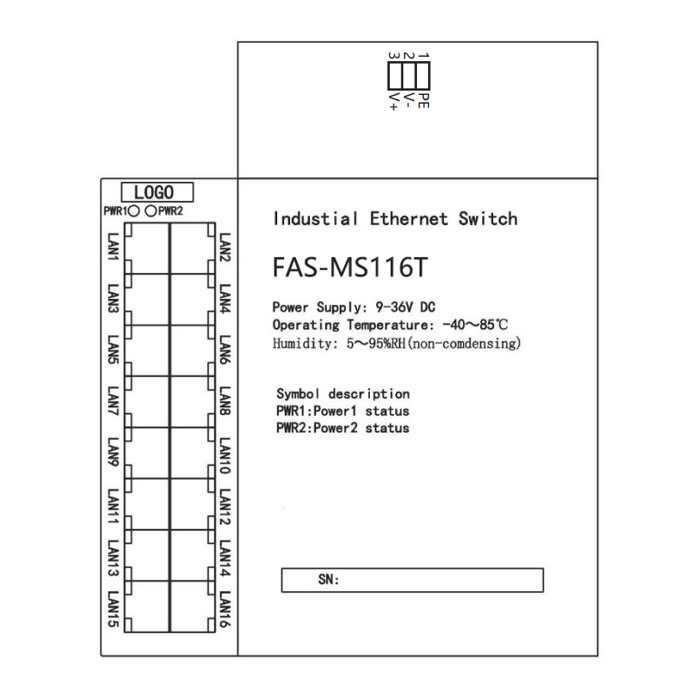

| FAS-MS116TWiring instructions |
| Interface number/wiring identification | Wiring instructions |
| 1 / PE | Protected area (earth) |
| 2 / V- | Negative pole of power input |
| 3 / V+ | Power input positive |
|
| FAS-MS108T/116T Indicator light description |
| ID/status | Meaning |
| PWR1 / Red light always on | Power supply 1 is normal |
| PWR1 / Red light goes out | Power supply 1 is abnormal |
| PWR2 / Red light always on | Power supply 2 is normal |
| PWR2 / Red light goes out | Power supply 2 is abnormal |
