| IO-Link | Device |
| Type | 1 AI, 0...20 mA |
| Rated working voltage UB | 18...30 V DC |
| Connection: IO-Link | M12，A-coded，Male |
| Analog port connection | M12，A-coded，Female |
| Analog port number | 1 |
| Interface | 0...20 mA input |
| Resolutions | 16 bit |
| Maximum load current，sensor/channel | 1 A |
| Maximum load current，actuator/channel | - |
| Degree of protection as per IEC 60529 | IP 67（When connected correctly） |
| Operating temperature | -25...+70 ℃ |
| Storage temperature | -25...+85 °C |
| Weight | 21 g |

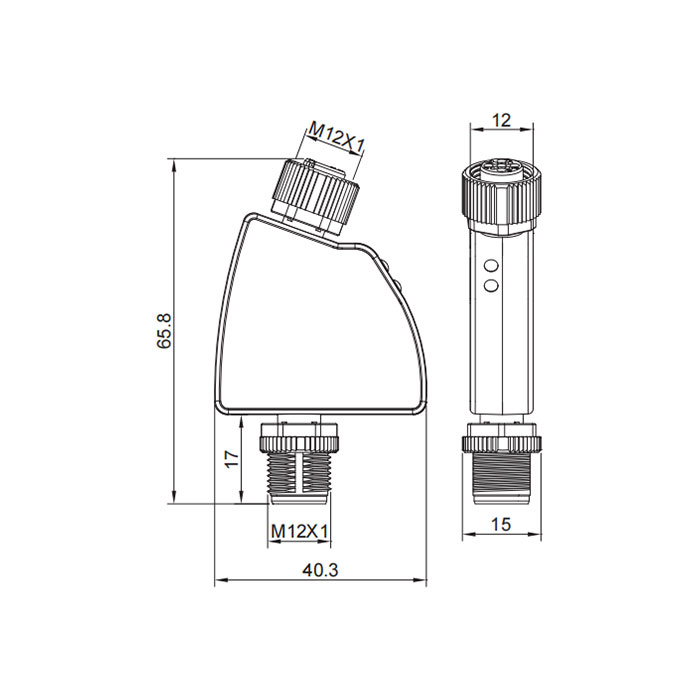

| Dimensions (length × width × height) | 40×15×65 mm |
| Shell material | Plastic |
| IO-Link | |
| Max. cycle time | 3 ms |
| IO-Link tackled data length | 2 pcs input bytes |
| Indicator light communication | Green LED, pulse |
| Indicator light error | Green LED indicator light |
