M8 3 Pin、Female flange socket、Front mount、63SA02-XXX
  • M8 3 Pin、Female flange socket、Front mount、63SA02-XXX
  • M8 3 Pin、Female flange socket、Front mount、63SA02-XXX
  • M8 3 Pin、Female flange socket、Front mount、63SA02-XXX

M8 3 Pin、Female flange socket、Front mount、63SA02-XXX

Ordering code: 63SA02-XXX
Part number : FCC M3E3-0001-10-VGB325-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m
Collect 询盘

Related recommendations

  • Function Parameter
  • Resource Download
  • Related videos
TypeM8 flange socket、Female、Front mount、3 Pin、A-coded
Maximum supply voltage AC UB30 V
Maximum supply voltage DC UB30 V
Number of conductors x conductor cross-section3×0.25mm²
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta-25...+85 °C


Certificates

  • 63SA02-XXX (FCC M3E3-0001-10-000-VGB325-XXX) -ROHS report

    2024-02-06   5.35MB

Certificates

  • 63SA02-XXX (FCC M3E3-0001-10-000-VGB325-XXX) -CE certificate

    2024-02-06   377KB

Product 3D

  • 63SA02-XXX (FCC M3E3-0001-10-VGB325-XXX) -3D (STEP file)

    2024-02-06   216KB

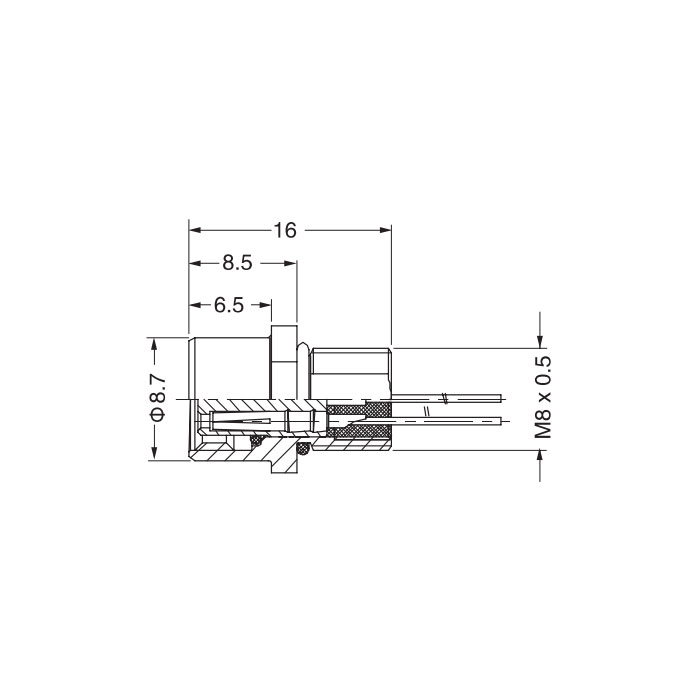

Product 2D

  • 63SA02-XXX (FCC M3E3-0001-10-VGB325-XXX) -2D (DWG file)

    2024-02-06   84.72KB
