| Network protocol/ Port level | IO-Link/ Class B |
| Type | 32 x DI NPN |
| Rated working voltage UB | 18...30 V DC |
| Module current consumption | ≤ 130 mA |
| Auxiliary input/output power status | US/UA |
| Module status indicator | Yes |
| Network status light | Yes |
| Port status indicator | Red, Yellow |
| Connection: IO-Link | M12，A-coded，Male,5 Pin |
| Connection: Power | - |
| Connection: I/O port | Terminal type |
| Number of I/O ports | 32 |
| Input number | 32 |
| Output number | - |
| Input/Output copnfigurable | No |
| Maximum load current，sensor/channel | 200 mA |
| Maximum output load current | 0.5A |
| Port status indicator (signal status) | Yellow LED indication light |
| Port diagnosis indication light(overloa) | Red LED indication light |
| Total current Uactuato | ≤ 4A |
| Total current Usensor | ≤ 4A |
| Degree of protection as per IEC 60529 | IP 20（In correct connection） |
| Working temperature Ta | -25...+70℃ |
| Storage temperature | -25...+85℃ |
| Weight | - |
| Fastener | 4 mounting holes/rail mounting |

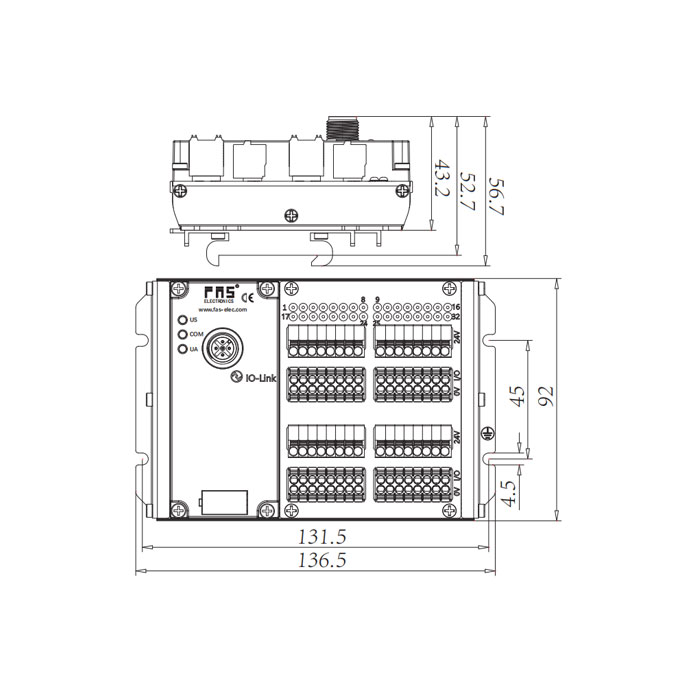

| Dimension (L*W*H) | 136.5×92×43.2 mm |
| Housing material | Aluminum alloy electrophoresis |
