| Network protocol | PROFINET、Ethernet/IP、CC-Link IEF Basic、Modbus TCP、OPCUA、MQTT |
| Rated working voltage UB | 18...30 V DC |
| Module current consumption | ≤ 130 mA |
| Auxiliary input/output power status | US/UA |
| Module status indicator | Yes |
| Network status light | Yes |
| Port status indicator | Red, Yellow |
| Connection: Fieldbus | M12，D-coded，Female |
| Connection: AUX power | M12，L-coded，Male/Female |
| Connection: I/O port | M12，A-coded，Female |
| Number of I/O ports | 8 |
| Input number | Maximum 16 pcs PNP input |
| Output number | Maximum 16 pcs PNP ouput |
| Input/Output copnfigurable | Yes |
| Maximum load current，sensor/channel | 1A |
| Maximum output load current | 2A |
| Port status indicator (signal status) | Yellow LED indication light |
| Port diagnosis indication light(overloa) | Red LED indication light |
| Total current Uactuato | ≤ 16A |
| Total current Usensor | ≤ 16A |
| Degree of protection as per IEC 60529 | IP67（In correct connection） |
| Working temperature Ta | -25...+70℃ |
| Storage temperature | -25...+85℃ |
| Fastener | 2 pcs mounting hole |

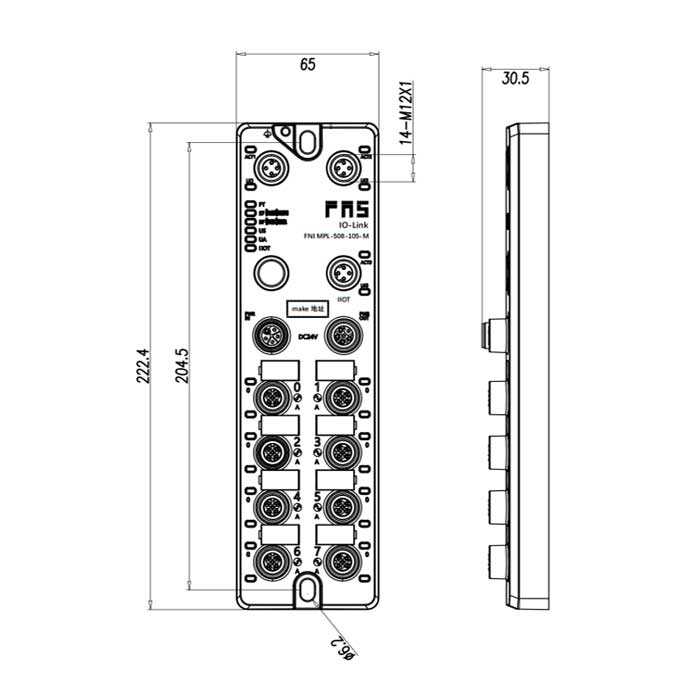

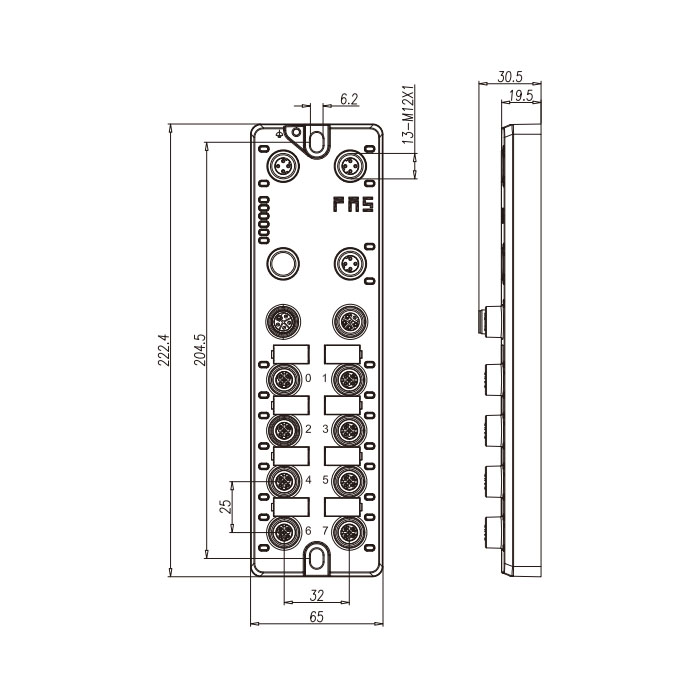

| Dimension (L*W*H) | 222×65×30.5 mm |
| Housing material | Nickel-plated Gd-Zn alloy |
| Weight | About 670 g |
