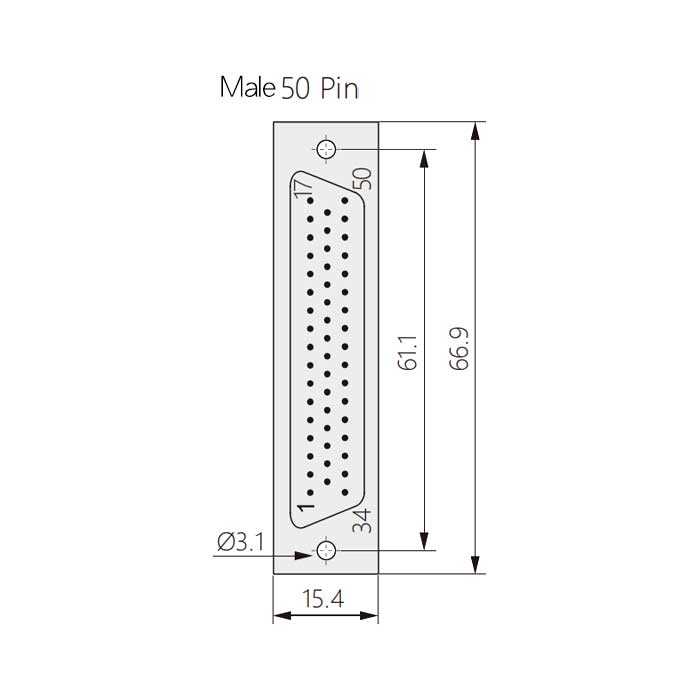

| Type | D-SUB connector, male | |||||||
| Number of poles | 50-pole | |||||||
| Shield | Yes | |||||||
| Rated voltage | 30 V AC/DC | |||||||
| Rated current | 2A | |||||||
| Temperature range | -25 ... +85 ℃ | |||||||
| Pressing method | Welded | |||||||
| Pressure line range | 8 ... 11 mm | |||||||
| Shell specifications | 5G | |||||||
| D-SUB Connector Housing (Technical Data) | ||||||||
| Material | Zinc die-cast, nickel plated | |||||||
| Temperature range | -35°C … +100 °C（-67°F… +212°F） | |||||||
| Maximum locking force | 40 Ncm (0.295 ft.lb.) | |||||||
| 45° outlet |
| |||||||
| Shell specifications | Shell | A | B | C | D | E | F | G |
| SIZE1 | 1 / 9 | 25.0 | 32.0 | 40.0 | 42.5 | 15.0 | 3.0 - 9.5 | 12.0 |
| SIZE2 | 2 / 15 | 33.3 | 40.3 | 41.4 | 43.8 | 15.0 | 3.0 - 12.5 | 12.0 |
| SIZE3 | 3 / 25 | 47.0 | 54.3 | 41.4 | 43.8 | 15.2 | 3.0 - 12.5 | 12.0 |
| SIZE4 | 4 / 37 | 63.5 | 70.6 | 41.4 | 43.8 | 15.2 | 3.0 - 12.5 | 12.0 |
| SIZE5 | 5 / 50 | 61.1 | 68.2 | 41.4 | 43.8 | 18.5 | 3.0 - 15.0 | 15.4 |
