IO-Link Hub、RFID、Ø 30 x 65 mm、Readable and writable data carrier、FIS108
  • IO-Link Hub、RFID、Ø 30 x 65 mm、Readable and writable data carrier、FIS108
  • IO-Link Hub、RFID、Ø 30 x 65 mm、Readable and writable data carrier、FIS108

IO-Link Hub、RFID、Ø 30 x 65 mm、Readable and writable data carrier、FIS108

Ordering code: FIS108
Series: FIS M-400-082-001-07-S4
  • IO-Link M12集线器 16×DI PNP(图1)
  • IO Link protocol device
  • High frequency fast reading and writing
  • Operating frequency 13,56 MHz
  • Protection level IP67
  • Change Note: ‘FIS M-400-072-001-07-S4’ has been changed to ‘FIS M-400-082-001-07-S4’, please refer to the new information (available for download from the official website), sorry for any inconvenience!
Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
Shell materialBrass, nickel-plated brass nuts
Product groupHF(13.56MHz)
Installation method Non-metallic (free zone)

Antenna shape

Round

Supported encoding block types

DIN ISO 15693
Connect

M12x1 plug，4 Pin

Interface

IO-Link 1.1

IO-Link processing data length32 input bytes/32 output bytes

Operating voltage UB

18...30 V DC，LPS/Level 2 only supported

Operating temperature

0...70 °C

Degree of protection

IP 67
Sizeφ30 x 65 mm


CE Certificate

  • FIS108 (FIS M-400-072-001-07-S4) -CE certificate

    2025-02-24   300.09KB

Product 3D

  • FIS108 (FIS M-400-072-001-07-S4) -3D (STEP file)

    2024-01-29   224.45KB

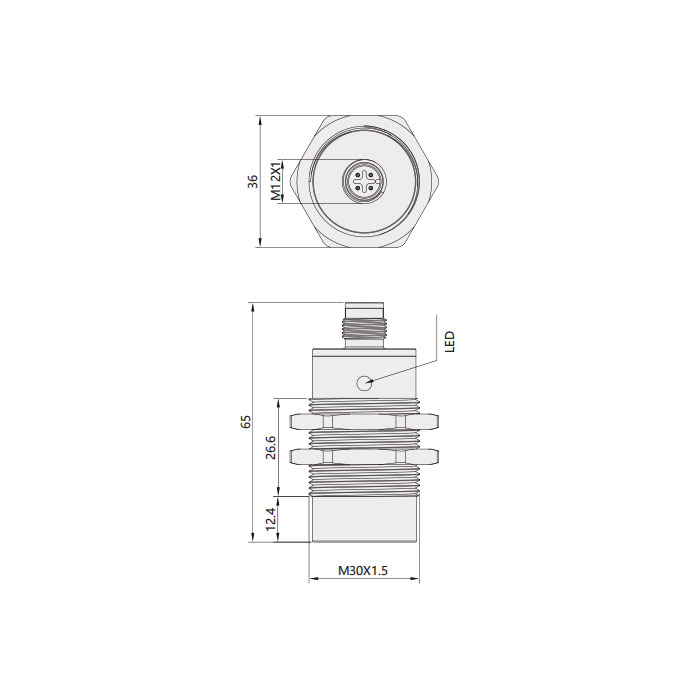

Product 2D

  • FIS108 (FIS M-400-072-001-07-S4) -2D (DWG file)

    2024-12-05   158.5KB

EPLAN

  • FIS108 (FIS M-400-072-001-07-S4) -EPLAN (Electrical diagram)

    2024-01-29   16.8KB

Manual

  • FIS108 (FIS M-400-072-001-07-S4) -instructions

    2025-01-13   687.83KB
