M12 4Pin male/male、D-coded、Double ended pre cast PVC shield non flexible cable、EtherCat network cable、Green sheath、0C3141-xxx

Ordering code: 0C3141-xxx

Part number : FCC-M414-M414-5D-036-VXG04C-xxx

Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments, for example: 005=0.5m, 010=1m, 015=1.5m

Collect 询盘

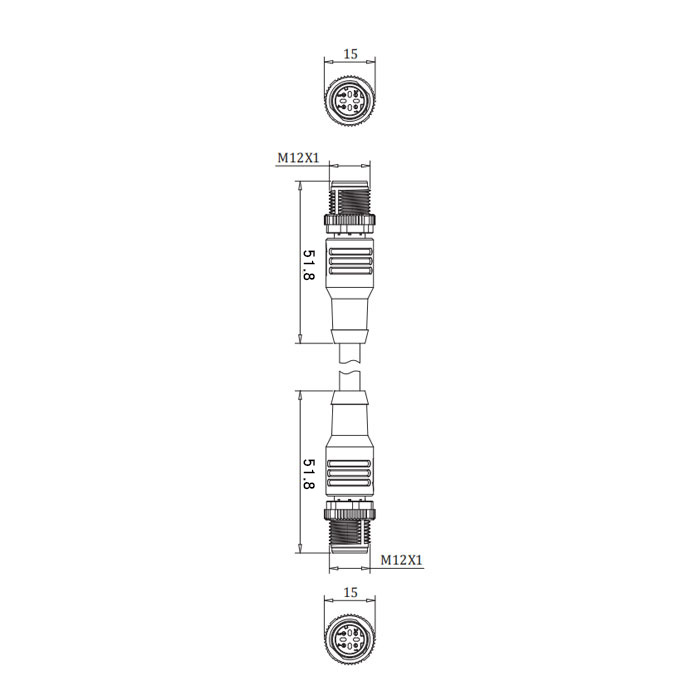

Type	M12 straight male conversion to M12 straight male 、4 Pin

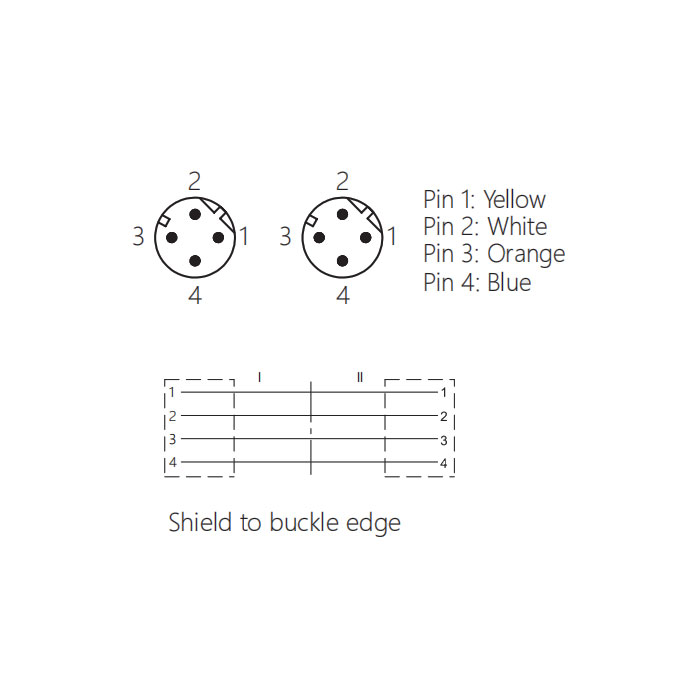

Coding	D-coded/D-coded
Rated working voltage U_B	60 V AC/DC
Cable color/material	Green/PVC（shield）
Degree of protection as per IEC 60529	IP 67
Ambient temperature Ta	-25...+80 °C

EtherCat protocol
