M12 4Pin male/2xM12 3Pin female 90°、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64T201-XXX
  • M12 4Pin male/2xM12 3Pin female 90°、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64T201-XXX
  • M12 4Pin male/2xM12 3Pin female 90°、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64T201-XXX
  • M12 4Pin male/2xM12 3Pin female 90°、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64T201-XXX

M12 4Pin male/2xM12 3Pin female 90°、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64T201-XXX

Ordering code: 64T201-XXX
Series: FCC M414-M425-M425-Y22-PW2434-XXX
  • Remarks: xxx = cable length, which can be customized as needed when ordering. The cable length is in increments of 0.5m, for example: 005=0.5m, 010=1m, 015=1.5m
Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

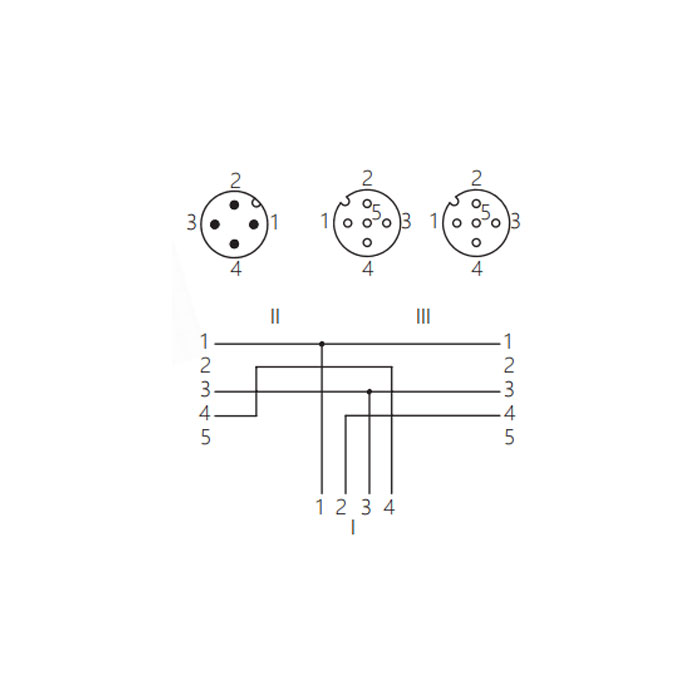

TypeM12 male 4 Pin conversion to 2×M12 right angled female 3 Pin、A-coded
Maximum supply voltage  AC UB250 V
Maximum supply voltage  DC UB250 V
Rated current4A
CableMolding
Number of conductors x conductor  cross-section3×0.34 mm²
Cable molor/materialYellow / PUR (Flexible cable)
Degree of protection as per  IEC 60529IP 67
Ambient temperature Ta   -25...+105°C
