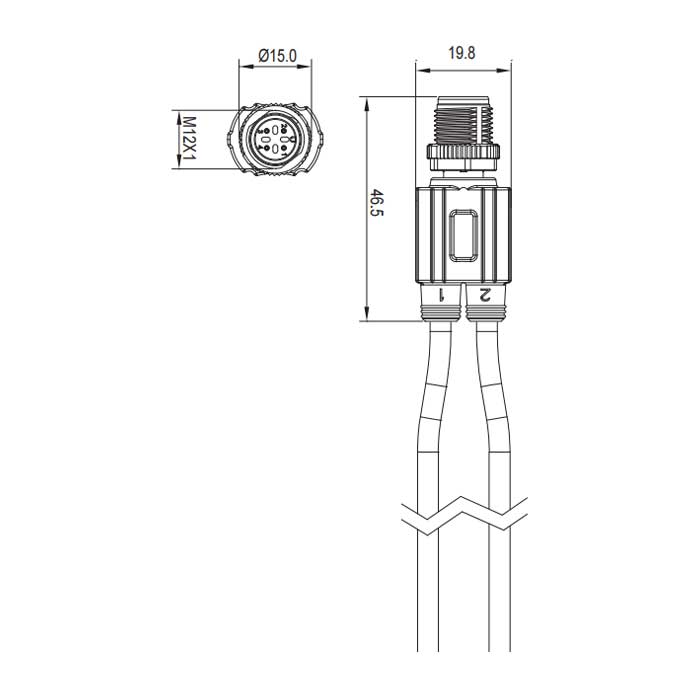

M12 4Pin male/2x Free end、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64TY01-XXX

<>

M12 4Pin male/2x Free end、Y type plug、Molding anti welding slag PUR flexible cable、Yellow sheath、64TY01-XXX

Ordering code: 64TY01-XXX

Series: FCC M414-0000-0000-Y22-PW2434-XXX

Remarks: xxx = cable length, which can be customized as needed when ordering. The cable length is in increments of 0.5m, for example: 005=0.5m, 010=1m, 015=1.5m

Inquiry

Related recommendations

Function Parameter
Resource Download
Related Video

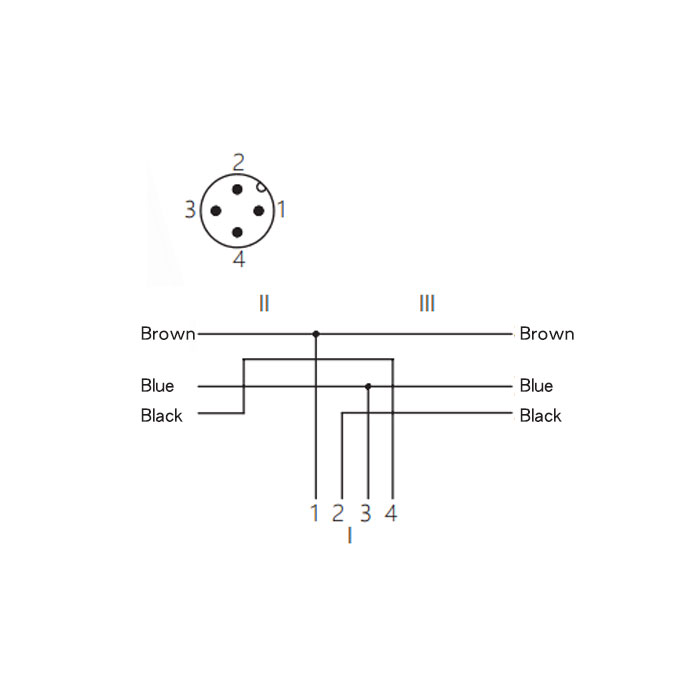

Type	M12 male with two free ends、 4 Pin、A-coded
Maximum supply voltage AC U_B	250 V
Maximum supply voltage DC U_B	250 V
Rated current	4A
Cable	Molding
Number of conductors x conductor cross-section	3×0.34 mm²
Cable molor/material	Yellow / PUR (Flexible cable)
Degree of protection as per IEC 60529	IP 67
Ambient temperature Ta	-25...+105°C
