7/8 5Pin、Female 90°、Single end molding PVC non flexible cable、Yellow sheathed、0PI023-XXX

Ordering code: 0PI023-XXX

Series: FCC-I725-0000-10-000-VX25A1-XXX

7/8 5Pin、Female 90°、Single end molding PVC non flexible cable、Yellow sheathed、0PI023-XXX

Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments, for example: 005=0.5m, 010=1m, 015=1.5m

Parameter Table Inquiry

Related recommendations

Function Parameter
Resource Download
Related Video

Type	7/8 female 90°(power connector)、5 Pin、A-coded
Rated working voltage U_B	300 V DC
Cable color/material	Yellow / PVC (Fixed installation)
Number of conductors x conductor cross-section	5×1.5mm²
Degree of protection as per IEC 60529	IP 68
Ambient temperature Ta	-25...+80 °C

Product 3D

0PI023-XXX (FCC I725-0000-10-000-VX25A1-XXX) -3D (STEP file)

2024-03-04 1.2MB

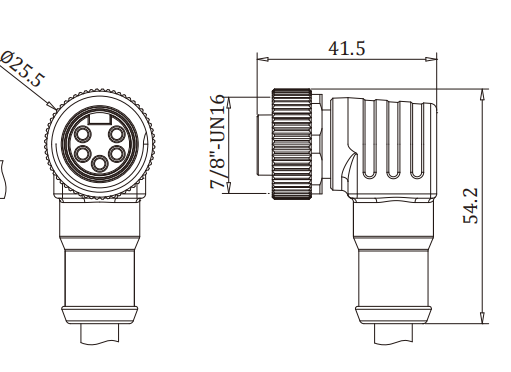

Product 2D

0PI023-XXX (FCC I725-0000-10-000-VX25A1-XXX) -2D (DWG file)

2024-03-04 340.51KB
