Type	M12 straight male、8 Pin、A-coded
Maximum supply voltage AC U_B	60 V
Maximum supply voltage DC U_B	60 V
Maximum current	4A
Cable	User-fabricated
Number of wires × wire cross-sectional area	8×0.14...0.25 mm²
Cable diameter	φ6-8 mm
Connection method	Screw terminal
Protection degree according to IEC 60529	IP 67
Ambient temperature Ta	-40...+85 °C

M12 connector

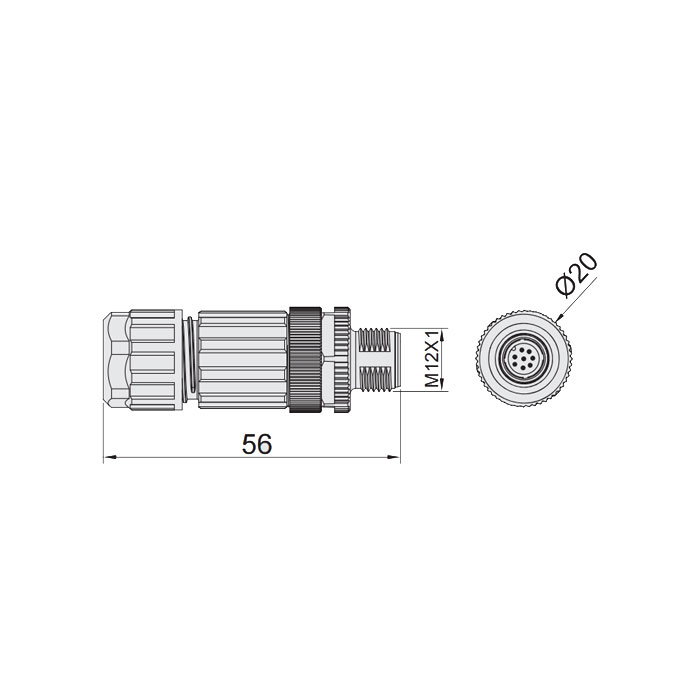

M12 8Pin、Male straight、Food grade、Screw connection、64F389
