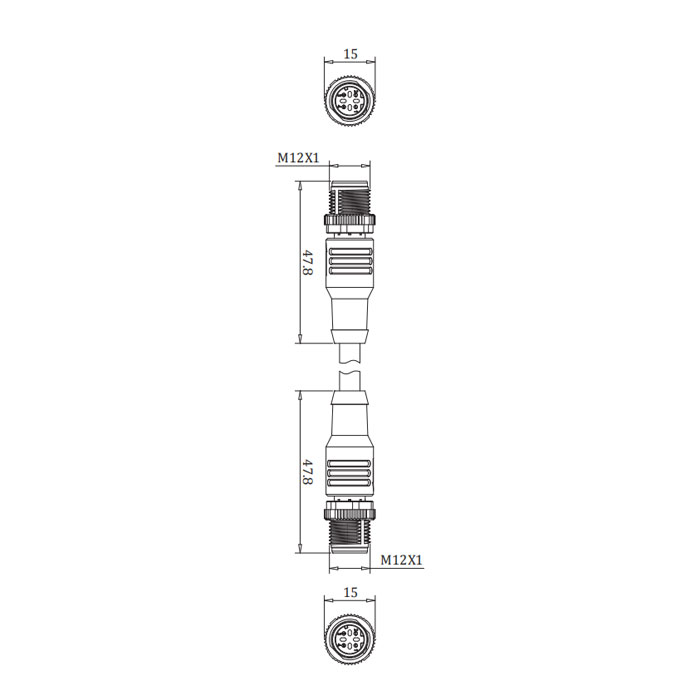

M12 4Pin D-coded male straight/male straight、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4128-XXX
  • M12 4Pin D-coded male straight/male straight、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4128-XXX
  • M12 4Pin D-coded male straight/male straight、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4128-XXX
  • M12 4Pin D-coded male straight/male straight、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4128-XXX

M12 4Pin D-coded male straight/male straight、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4128-XXX

Ordering code: 0C4128-XXX
Series: FCC-M414-M414-5D-033-VXYPNA-XXX
M12 4Pin D-coded male straight/male straight、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4128-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m
Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeM12 straight male conversion to M12 straight male、4 Pin、D-coded
Rated working voltage AC UB60 V
Rated working voltage DC UB60 V
Number of conductors x conductor cross-section4×22 AWG
Cable color/materialYellow / PVC shield (Fixed installation)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta-25...+80 °C
