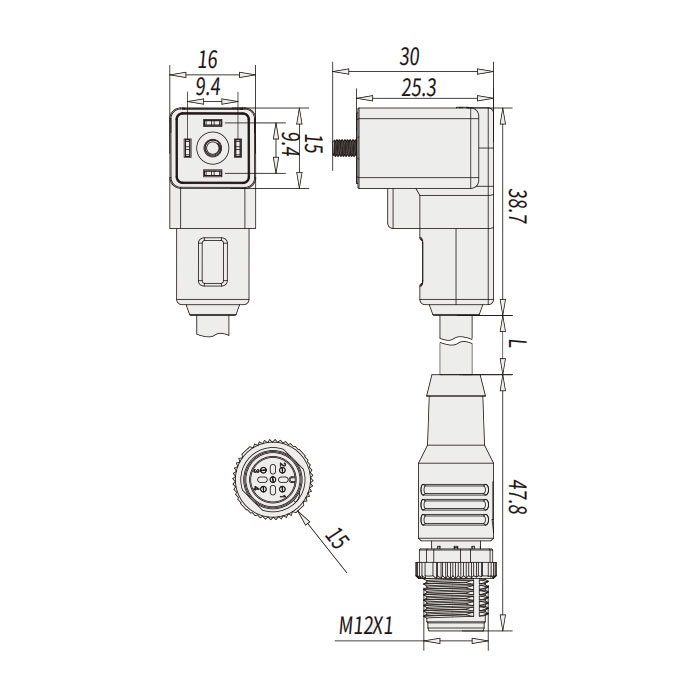

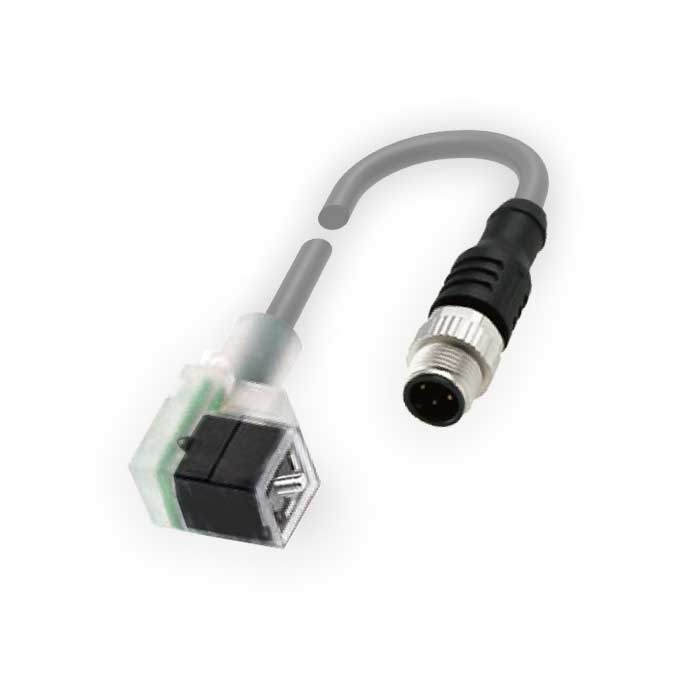

Valve plug type C, industrial, 9.4 mm, 4Pin to M12 male straight, dual-end pre-cast PUR flex cable, black sheath, 6VC061-XXX
  • Valve plug type C, industrial, 9.4 mm, 4Pin to M12 male straight, dual-end pre-cast PUR flex cable, black sheath, 6VC061-XXX
  • Valve plug type C, industrial, 9.4 mm, 4Pin to M12 male straight, dual-end pre-cast PUR flex cable, black sheath, 6VC061-XXX
  • Valve plug type C, industrial, 9.4 mm, 4Pin to M12 male straight, dual-end pre-cast PUR flex cable, black sheath, 6VC061-XXX

Valve plug type C, industrial, 9.4 mm, 4Pin to M12 male straight, dual-end pre-cast PUR flex cable, black sheath, 6VC061-XXX

Ordering code: 6VC061-XXX
Series: FCC VC62-M413-30-PX0350-XXX
Valve plug type C, industrial, 9.4 mm, 4Pin to M12 male straight, dual-end pre-cast PUR flex cable, black sheath, 6VC061-XXX
  • Remarks: xxx=cable length, order can be customised according to the need, cable length in 0.5m increments, example: 005=0.5m, 010=1m, 015=1.5m
Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeValve plug, type C, Industrial, 9.4mm
Plug 1/PinValve plug, 4 Pin
Plug 2M12 straight male connector
Cable routing0/180°
Maximum supply voltage  AC UB24V
Maximum supply voltage DC UB24V
CableCasting
Cable Colour/materialBlack/PUR flexible cable
Current rating4.0A
SuppressorSuppressor diode
Number of conductors × cross-sectional area of conductors3×0.5 mm²
Protection level according to IEC 60529IP 67
Ambient temperature Ta-25...+80 °C
